MONEL 400 PIPES FITTINGS


ASTM B366 Monel Buttweld Elbow, Monel 400 Seamless Butt weld Fittings Exporter, Alloy 400 Long Radius Bend, Monel 400 Pipe Fittings Supplier.

Amco Metals an ISO 9001: 2015 certified company, that offer an excellent product line that is quality assured and innovative as well. At Amco, we give preference to the quality and standards into the goods, as well as services that we offer. Above all, we focus on complete customer satisfaction.

We are a manufacturer, trader, stockist, supplier, and exporter of a comprehensive range of WNR 2.4360 Monel 400 Pipe Fittings, which are made of Monel, a Copper-Nickel alloy which is malleable yet durable, are serviceable under a wide range of temperatures and resistant to some corrosive elements.

Our ASME SB 366 Monel 400 Elbows are resistant to caustic solvents, acids and alkalines, as well as sea water, has high robustness at high temperatures, and are weldable too, used in many marine engineering applications. We offer quality tested, certified UNS N04400 Monel 400 Pipe Fittings in nominal diameters and pressure ratings, which are reliable and join pipes conveying pipes conveying water and gas in the beverage and fire suppression industry.


We maintain production standards of international levels to ensure our products are 100% durable and completely customizable.



ASME/ANSI B16.9 Welded Pipe Fittings, Monel 400 elbow, Reducer, Alloy 400 End Pipe Cap Manufacturer, Monel Alloy 400 Swage Nipple, Monel 400 Equal Cross Supplier.

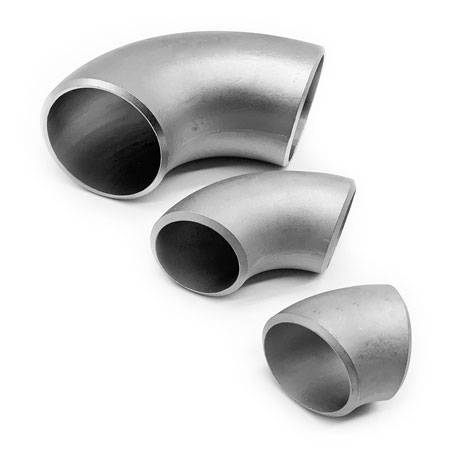

Monel 400 Elbow
Monel 400 Elbow
Monel 400 Elbow

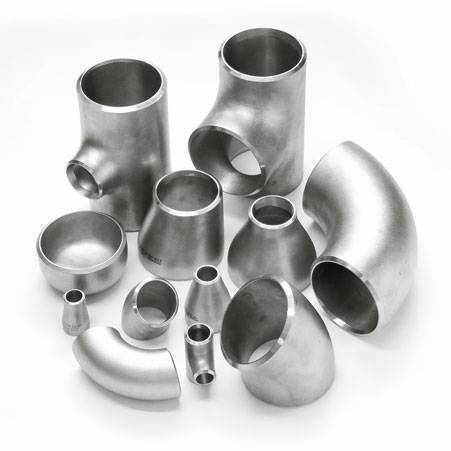

Monel 400 Buttweld Fittings
Monel 400 Buttweld Fittings
Monel 400 Buttweld Fittings

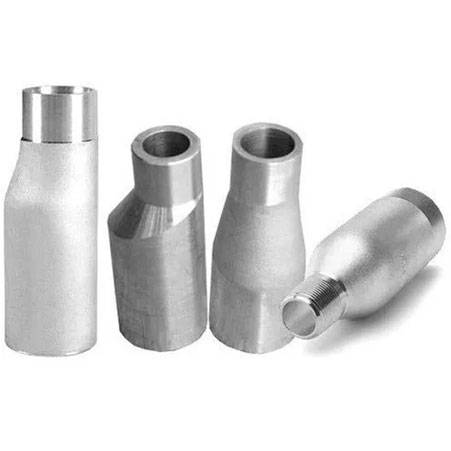

Alloy 400 Swage Nipple
Alloy 400 Swage Nipple
Alloy 400 Swage Nipple

ASTM B366 Monel 400 Pipes Fitting Specification

Specifications : ASTM B 366 / ASME SB 366

Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"

SCH :Sch 5 TO Sch XXS.

Type : Seamless / Welded / Fabricated


Alloy 400 Pipes Fitting Equivalent Grade

STANDARD  WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe



Monel 400 Pipes Fitting Chemical Composition

Grade  C Mn Si Cu S Ti Ni Al Fe
Monel 400 0.3 max 2.0 max 0.5 max 28.0 – 34.0 0.02 max - 63.0 min 0.50 max 1.0 – 2.5



Alloy 400 Pipes Fitting Mechanical Properties

Element  Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %





Applications Industry
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals



Our Main Export Countries

  •   ASIA - Thailand, Singapore, Sri lanka, Vietnam, Bangladesh, South Korea
  •   Middle East - Kuwait, Dubai, Saudi Arabia, Yemen, Iran, Qatar,Oman, Bahrain, Jordan
  •   Europe - United Kingdom, Italy, Belgium, France, Croatia, Spain
  •   South America - Argentina, Chile, Brazil, Colombia, Venezuela, Paraguay
  •   Africa - Ghana, Nigeria, South Africa,Sudan,Libya



Other Types Of Monel 400 PIPE FITTINGS
Monel 400 Pipe Fittings Alloy 400 Buttweld Pipe Fittings
Monel 400 Unions Alloy 400 Crosses
Monel 400 Pipe Fittings Alloy 400 Buttweld Fitting Exporter
ANSI B16.9 Monel Buttweld Elbow Stockist Monel 400 End Pipe Cap Manufacturer
Monel 400 Industrial Pipe Fittings Alloy 400 Tees Supplier
Monel 400 Caps Alloy 400 Tees
Monel 400 Inserts Alloy 400 Street Elbows
Monel 400 Reducers Alloy 400 45° Elbows
ASTM B366 90 deg. Elbow Manufacturer Monel 400 Reducing Nipple
Monel Alloy UNS N04400 Pipe Fittings Monel Werkstoff Nr. 2.4360 Buttweld Fittings
ASME 16.9 Monel Piggable Bend AISI B16.28 Monel Alloy Reducing Elbow
ANSI Monel Welded Fittings Stock Holder Monel ASTM B366 Seamless Buttweld Fittings
Monel 400 Elbow Alloy 400 Stubends Exporter
