ASTM A193 B7 Stud Bolt & A194 2H Nuts Supplier


Send Inquiry

ASTM A193 B7 studs and A194 2H nuts are the most commonly specified fastener combinations for high temperature, high pressure bolted joint applications. B7 stud bolts are heat-treated chromium molybdenum alloy steel fasteners used for flanged connections in the oil and gas, petrochemical, power generation, and pressure vessel industries. The bolted connection in the assembly is code-compliant and uses A194 2H strong hex nuts that can handle rough working conditions. We manufacture and ship ASTM A193 B7 studs and A194 2H nuts with complete material certification to customers locally and overseas.

Why Choose Amco Metals?

By choosing Amco Metals, you are assured of working with a renowned manufacturer and exporter of B7 studs and 2H nuts with comprehensive in-house production capabilities. We offer certified materials with EN 10204 3.1 mill test certifications and complete heat traceability to the oil, gas and power generating industries. We offer a broad dimensional range of bespoke lengths and thread shapes, at low cost and extremely predictable delivery dates.

At Amco Metals, we cultivate and nurture excellence and reform and address them in our outcomes through continuous strains and quality control. We provide our clients with a high-quality product profile and help them select the best option for their specific industry. We are an ISO 9001: 2015 certified company dedicated to building and sustaining customer-oriented engagements.

We are a manufacturer, trader, stockist, supplier, and exporter of B7-2H Fasteners that can be mechanically fastened or clamped permanently or temporarily. They are quick to fit and remove too. Our B7 2H stud bolts are crafted precisely and adhere to industry-leading standards. With precise stud bolts and nuts dimensions, our products fit seamlessly into your projects, ensuring a secure and efficient assembly.

ASTM A194 2H NUTS, A193 B7 Studs, A193-B7 Stud Bolt, A193 B7 Stud Bolts Suppliers, A193 B7m Stud Bolts Factory, A193 B7m Stud Bolts Suppliers, A193 B7 Threaded Studs Manufacturers, A193 B7 Stud Bolts Manufacturers, A193 B7 Studs Supplier, A193 B7 Threaded Studs Suppliers, A193 B7m Stud Bolts Manufacturers.

Table of Content

ASTM A193 B7 Studbolts

ASTM A193 B7 Studbolts

ASTM A193 B7 Studbolts

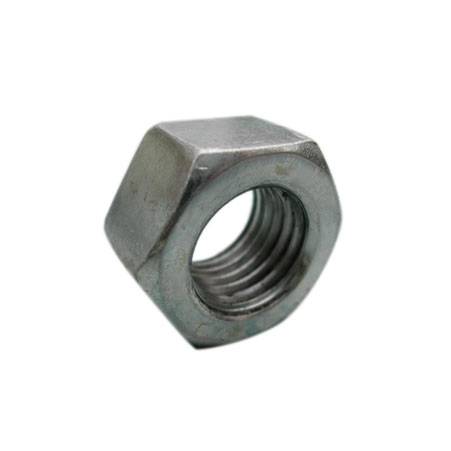

ASTM A194 2H Hex Nuts

ASTM A194 2H Hex Nuts

ASTM A194 2H Hex Nuts

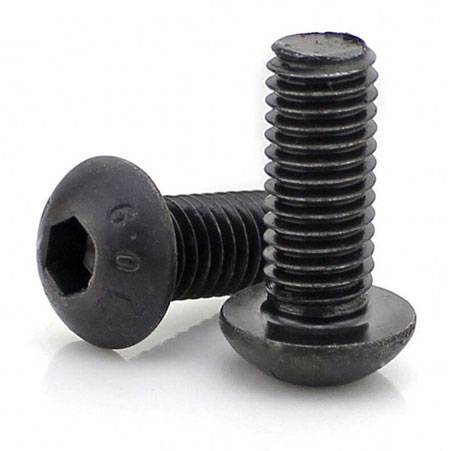

ASTM A194 2H Screws

ASTM A194 2H Screws

ASTM A194 2H Screws

The SA 193 Gr B7 material used in our stud bolts offers exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. We offer ASTM A193 B7 Studs and Bolts for high-pressure service applications like heat exchangers and boilers, as they have high strength and tolerance. Our A194 2H Heavy Hex Nut benefits heavy industrial applications operating at elevated temperatures.

We hold a check on market courses and interests to develop new, sustainable and efficient products capable of withstanding customization. We have built a strong portfolio of premium products over the span of 25 years.

Stud Bolt B7 Price

ASTM A193 Grade B7 Fasteners
Price
astm a193 grade B7 stud bolt
US $0.001-4 / Piece
ASTM A193 Grade B7 Plow Bolt
US $29.60 / pkg. of 25
ASTM A193 grade B7 threaded Rod, B7 stud bolt
US $0.01-2 / Piece
ASTM A193 Grade B7 Structural Bolt
US $13.20 / pkg. of 25 / Kilogram
ASTM A193 grade B7 wheel stud bolt
US $0.1-4 / Piece
ASTM A193 grade B7 threaded rod with 2h nut
US $0.01-2 / Piece

ASTM A193 Grade B7 Flat Washer
US $0.06–$4.92
Stud bolt DIN 975 grade ASTM A193 B7
US $0.6-1.3 / Piece

ASTM A193 Gr B7 Stud Bolt

Stud Bolts ASTM A193 B7

ASTM A193 Grade B7 Material

ASTM A193 Grade B7 Bolt Strength
ASTM A194 Grade 2H Nuts
US $3.00–$6.22

Stud Bolt B7 Spefication

Specifications : IS, BS, ASTM

Standard : ASTM / ASME - A/ SB 193/194

Size : 1/2'' X TO 4''

Length :100 TO 1000MM

Type : Stud Nuts

SA 193 GR B7 Chemical Composition

Element
B7 (AISI 4140)
Carbon
0.38 - 0.48%
Manganese
0.75 - 1.00%
Phosphorus, max
0.035%
Sulfur, max
0.040%
Silicon
0.15 - 0.35%
Chromium
0.80 - 1.10%
Nickel
Molybdenum
0.15 - 0.25%

ASTM A193 B7 Yield Strength

Grade
Size
Tensile ksi, min
Yield, ksi, min
Elong, %, min
RA % min
HBW
HRC
B7
Up to 2-1/2
125
105
16
50
321 max
35 max
2-5/8 - 4
115
95
16
50
4-1/8 - 7
100
75
18
50

ASTM A194 Grade 2H Mechanical Properties

Specification Material Nominal Size, In. Tempering Temp. °F Proof Load Stress, ksi Hardness Rockwell See Note
Min Max
ASTM A194 Grade 2H Medium Carbon Steel, Quenched and Tempered 1/4 - 4 850 175 C24 C38 1,2

B7 Stud Bolt Chart

NOMINAL SIZE (D)
BODY DIAMETER
HEAD THICKNEASTM A193
ACROASTM A193 THE FLATS
ACROASTM A193 CORNERS
D (MAX)
D (MIN)
H (MAX)
H (MIN)
F (MAX)
F (MIN)
C (MAX)
C (MIN)
m10
10.00
9.78
6.63
6.17
17.00
15.73
18.48
17.77
m12
12.00
11.73
7.76
4.24
19.00
17.73
20.78
20.03
m14
14.00
13.73
9.09
8.51
22.00
20.67
24.25
23.35
m16
16.00
15.73
10.32
9.68
24.00
23.67
27.71
26.75
m20
20.00
19.67
12.88
12.12
30.00
29.16
34.64
32.95
m24
24.00
23.67
15.44
14.56
36.00
35.00
41.57
39.55
m30
30.00
29.67
19.48
17.92
46.00
45.00
53.12
50.85
m36
36.00
35.61
23.38
21.63
55.00
53.80
63.51
60.79
m42
42.00
41.38
26.97
25.03
65.00
62.90
75.06
71.71
m48
48.00
47.38
31.07
28.93
75.00
72.60
86.60
82.76
m56
56.00
55.26
36.2
33.80
85.00
82.20
98.15
93.71
m64
64.00
63.26
41.32
38.68
95.00
91.80
109.70
104.65
m72
72.00
71.26
46.45
43.55
105.00
101.40
121.24
115.60
m80
80.00
79.26
51.58
48.42
115.00
111.00
132.72
126.54
m90
90.00
89.13
57.74
54.26
130.00
125.50
150.11
143.07
m100
90.00
99.13
63.9
60.10
145.00
140.00
167.43
159.60

A194 2h Nut Dimensions

Diameter (D) Body Diameter (D) Across the Flats (F) Across the Corners © Head Height (H) Thread Lengths (T)
MAX MIN MAX MIN MAX MIN MAX MIN < 6” > 6”
1/2 0.515 0.482 0.875 0.85 1.01 0.969 0.364 0.302 1.25 1.5
5/8 0.642 0.605 1.062 1.031 1.227 1.175 0.444 0.378 1.5 1.75
3/4 0.768 0.729 1.25 1.212 1.443 1.383 0.524 0.455 1.75 2
7/8 0.895 0.852 1.438 1.394 1.66 1.589 0.604 0.531 2 2.25
1 1.022 0.976 1.625 1.575 1.876 1.796 0.7 0.591 2.25 2.5
1 1/8 1.149 1.098 1.812 1.756 2.093 2.002 0.78 0.658 2.5 2.75
1 1/4 1.277 1.223 2 1.938 2.309 2.209 0.876 0.749 2.75 3
1 3/8 1.404 1.345 2.188 2.119 2.526 2.416 0.94 0.81 3 3.25
1 1/2 1.531 1.47 2.375 2.3 2.742 2.622 1.036 0.902 3.25 3.5
1 3/4 1.785 1.716 2.75 2.662 3.175 3.035 1.196 1.054 3.75 4
2 2.039 1.964 3.125 3.025 3.608 3.449 1.388 1.175 4.25 4.5
2 1/4 2.305 2.214 3.5 3.388 4.041 3.862 1.548 1.327 4.75 5
2 1/2 2.559 2.461 3.875 3.75 4.474 4.275 1.708 1.479 5.25 5.5
2 3/4 2.827 2.711 4.25 4.112 4.907 4.688 1.869 1.632 5.75 6
3 3.081 2.961 4.625 4.475 5.34 5.102 2.06 1.815 6.25 6.5

FAQ

As a premier chromium-molybdenum alloy steel specification, ASTM A193 B7 covers heat-treated fasteners engineered for high-pressure systems. As a leading manufacturer, we engineer B7 stud bolts to deliver exceptional strength and structural safety in high-temperature flanged connections.

Mechanical load requirements. Heavy hex nuts are utilized with B7 studs. An unapproved A194 B7 connection is a hazardous weak point, while this recognized coupling guarantees joint integrity under extreme industrial load.

Both are good stud bolts, but B16 has vanadium for higher heat restrictions. B7 covers most high pressure circumstances, and B16 is used when operational temperatures surpass B7 restrictions.

ASTM A193 B7 fasteners are very important for oil refining, chemical processing, power generation, etc. These sturdy B7 studs are utilized in high pressure piping and heat exchangers.

Yes, this heavy duty grade of stud bolt was specifically designed for pressure containment joints. In harsh conditions and high pressure cycles, B7 studs unique chemistry maintains clamp loads and mechanical strength of the material.

Applications Industry

  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals

Our Main Export Countries

  •   ASIA - Thailand, Singapore, Sri lanka, Bangladesh
  •   Middle East - Kuwait, Dubai, Saudi Arabia, Qatar, Oman, Bahrain, Jordan
  •   Europe - United Kingdom, Italy, Belgium, France, Croatia, Spain
  •   South America - Argentina, Chile, Brazil, Colombia, Paraguay
  •   Africa - Ghana, South Africa
